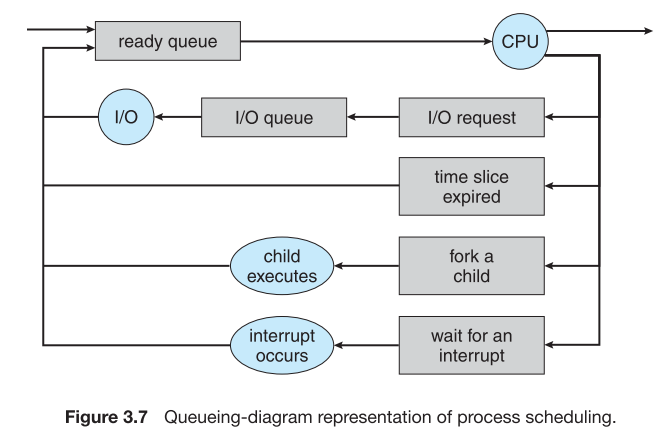

Figure 3.7 說明

• Each rectangular box represents a queue. Two types of quesues are present:
  1. the ready queue and a set of device queues.
  2. a set of device queues
• The circles represent the resources that server the queues,
  and arrows indicate the flow of processes in the system.
